Containerized Battery Energy Storage System (BESS)

Top energy density. Reliable in harsh environments. Best return on investment



We Offer Unmatched Benefits to Customers

Top Energy Density

We combine high energy density batteries, power conversion and control systems in an upgraded shipping container package. Lithium batteries are CATL brand, whose LFP chemistry packs 1 MWh of energy into a battery volume of 2.88 m3 weighing 5,960 kg.

Customizable Formats to Optimize Investment Return

We adapt our reference design to fit customers’ specific energy storage/power requirements and environmental conditions; We use modelling simulation to optimize system design for delivering the best price performance for every customer use-case.

Reliability in Harsh Environmental Conditions

Our design incorporates safety protection mechanisms to endure extreme environments and rugged deployments. Our system will operate reliably in varying locations from North America to sub-Saharan Africa.

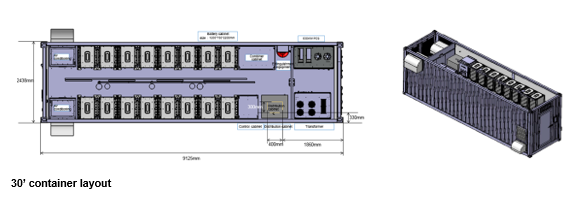

System Layout




World-leading Battery Technology

  • The core technology used in Microgreen containerized energy storage solutions are top quality Lithium Ferrous Phosphate (LFP) cells from CATL.
  • CATL’s 280Ah LiFePO4 (LFP) cell is the safest and most stable chemistry among all types of lithium ion batteries, while achieving 6,000 charging cycles or more.
  • CATL serves global automotive OEMs. It is the global volume leader among Tier 1 lithium battery suppliers with plant capacity of 77 GWh (year-end 2019 data)

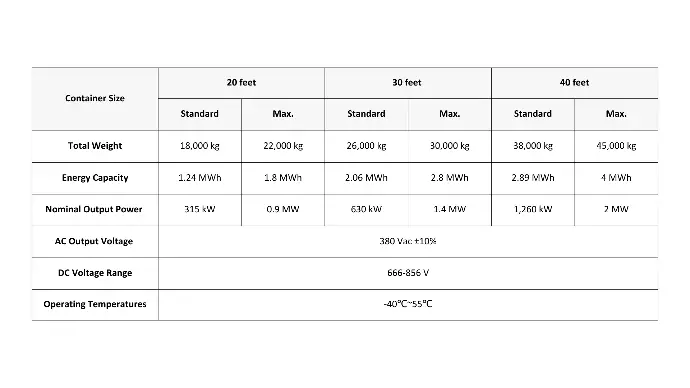

Reference Designs for Microgreen Containerized Storage Solution

Features & Performance

Wide Range of MWh

we offer 20, 30 and 40-foot container sizes to provide an energy capacity range of 1.0 – 2.9 MWh per container to meet all levels of energy storage demands.

Optimized Price Performance

Customized design to offer both competitive up-front cost and lowest cost-of-ownership for every usage scenario

Insulated Containers

Safe and secure access with active thermal management to optimize battery life and offer a work-friendly operating environment.

Multiple AC/DC Supply Inputs

Multiple connections to renewable energy sources (e.g., ground-mount/rooftop solar, wind turbine), AC grid connection, diesel generator

Modular Design

Modular design of system architecture facilitates scalability and expansion.



Proven Battery Management System (BMS)

Achieves climate-proof operation over the widest range of hot/cold and wet/dry conditions.

Fire protection and HVAC

Built-in to optimize safety and lengthen battery life.

Multiple Inverter Brands

We offer multiple inverter brands in our solution to meet regional ratings and approvals.

Customized EMS

Battery monitoring & diagnostics and IoT data reporting; controllable load parameters for power on/off including microgrid demand, back-up triggers and hourly price schedules.

Applications

Microgreen solutions provide reliable power and energy storage for off-grid regular loads, grid-support cases and emergency back-up, with switchable energy input from renewable energy, a grid connection or diesel generator.


Modular and scalable architecture supports these use cases:

Reliable Off-grid

Day/night, EV fleet plug-in or other load shifting, extending duration from minutes to hours to multi-day periods offsetting renewable intermittency

Grid Support

Smooths renewable intermittency, offsets supply shut-downs, ramp rates, peak management, frequency regulations, voltage support, and rate arbitrage

Back-up Power

Replaces traditional diesel genset with silent, pollution-free solution that reduces GHG emissions
