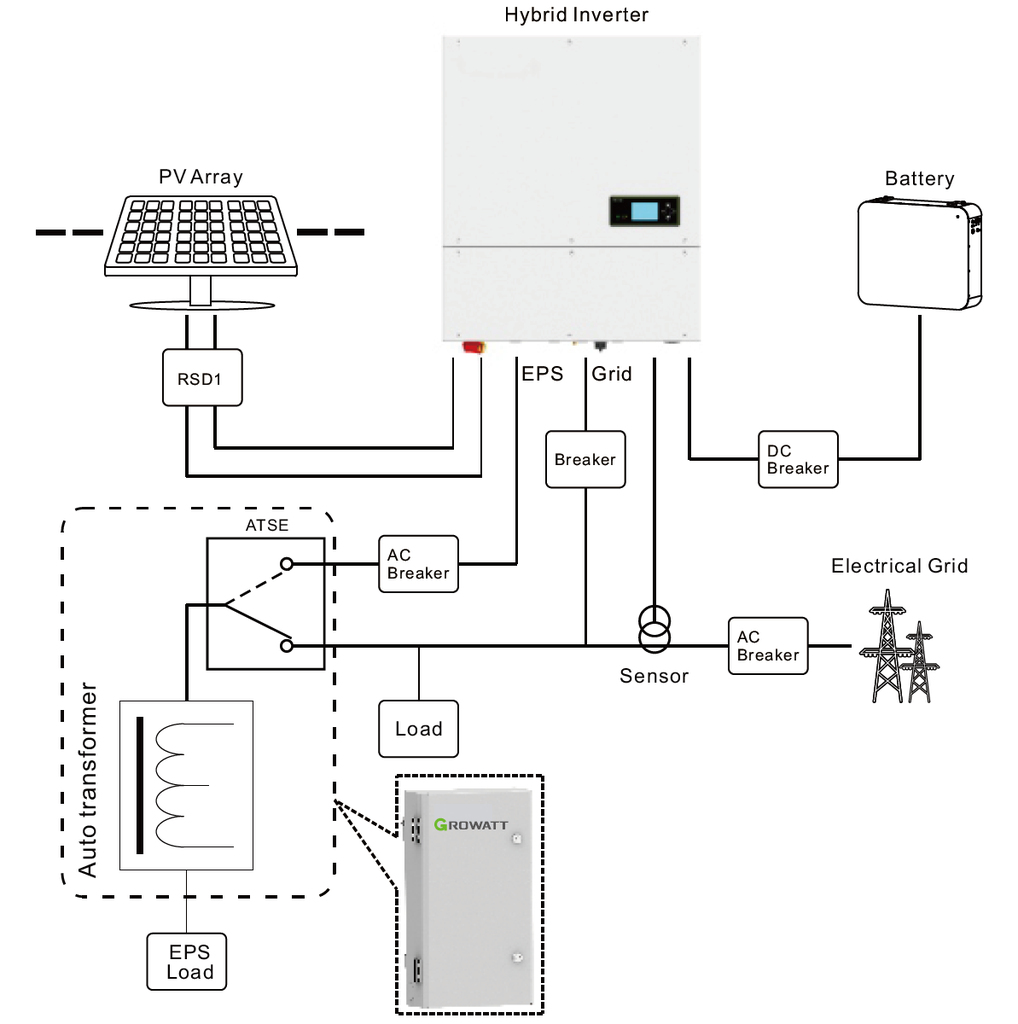

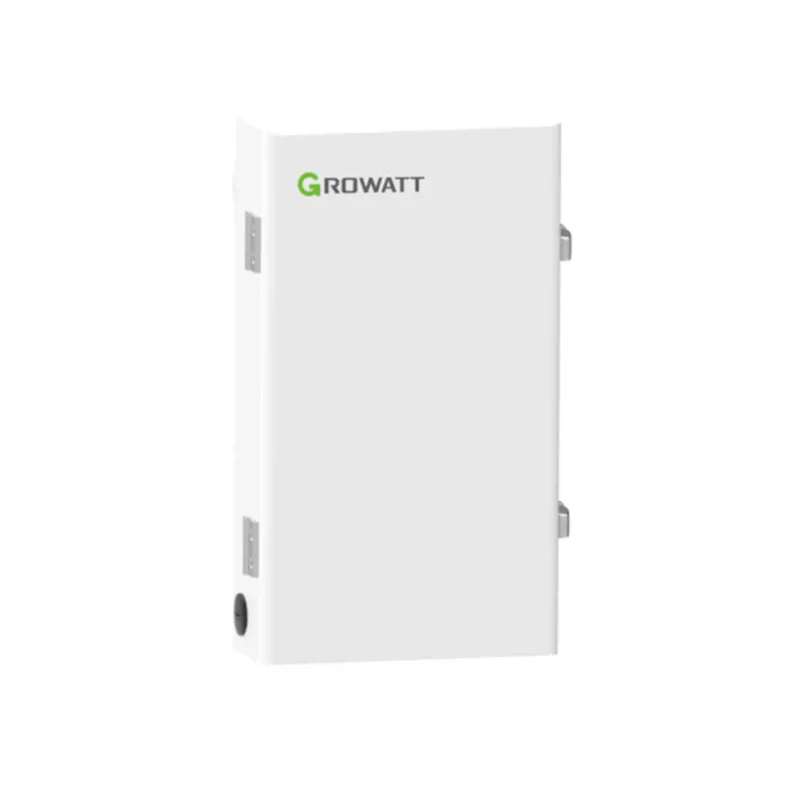

The Auto Transfer Transformer (ATS-US) controls the switch of the contactors to provide power to the critical load stated as EPS Emergency Power Supply load in both grid-tied and off-grid conditions. There is a contactor in ATS-US to provide user a simple connection. ATS-US is operating with PCS inverter for the purpose of providing the split phase power when grid accidentally or unexpectedly goes off. This approach allows the home critical continuously to be supplied.
Key Features
Scalable Power: Designed to efficiently connect 2 to 4 battery clusters in parallel, boosting your system's capacity.
Wide Voltage Range: Supports a broad voltage range from 40Vdc to 800Vdc, suitable for diverse solar power systems.
High Current Handling: Capable of managing up to 700A, enabling significant energy flow for larger setups.
Environmental Resilience: Operates effectively between -10℃ to 50℃ and withstands humidity levels of 5% to 95%.
IP65 Rated: Dust-tight and protected against jets of water, ensuring durability for indoor and outdoor use.
Flexible Connectivity: Compatible with various cable sizes (7AWG, 4AWG, 2AWG) for adaptable installation options.
Compact and Lightweight: With dimensions of 300/115/250mm and weighing around 4±1kg, it's easy to integrate into any system.
AXE/GBLI Battery Compatibility: Specifically optimized for use with AXE / GBLI 6532 battery models, ensuring seamless operation.
