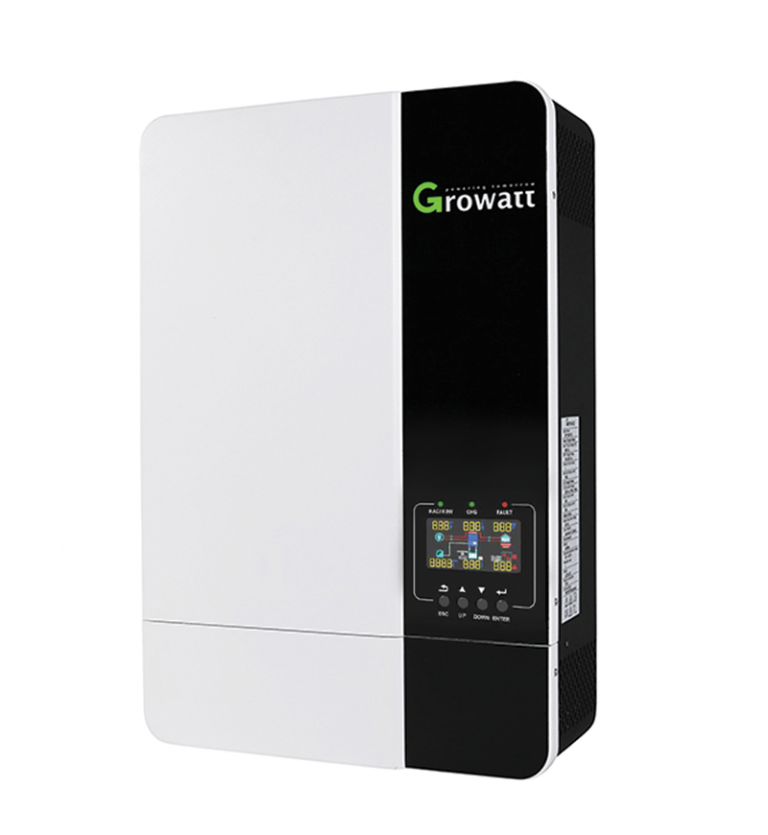

Growatt SPF 5000 US Inverter: Reliable and Versatile Solar Power Solution
The Growatt SPF 5000 US Inverter is a robust and adaptable inverter designed for both residential and commercial solar power systems. It offers integrated features that ensure efficient energy management and reliable performance, making it an ideal choice for diverse energy needs.
Key Features:
• Integrated MPPT Charge Controller: Optimizes solar power generation by maximizing energy harvest under varying conditions.
• Equalization Charging Function: Prolongs battery life and enhances performance by balancing battery cells.
• High PV Input Voltage: Supports up to 450VDC, allowing for flexible solar panel configurations.
• Generator Connection: Enables connection to a generator for additional power reliability.
• Configurable Input Priority: Choose between grid or solar as the primary energy source, based on your energy strategy.
• Remote Monitoring: Optional WIFI/GPRS modules allow for remote monitoring and management of the system.
• Parallel Operation Support: Expand your system’s capacity up to 30kW by connecting up to 6 units in parallel.
• Joint Power Supply: Automatically utilizes both PV and grid power to meet load demands when solar energy is insufficient.
• Scheduled Charging/Discharging: Flexibly manage the timing of inverter charging and discharging according to your needs.
Inverter Specifications:
• Battery Voltage: 48VDC, compatible with both lithium and lead-acid batteries.
• Rated Power: 5000VA/5000W, providing ample power for various applications.
• AC Voltage Regulation: 230VAC ± 5% at 50/60Hz, ensuring stable power output in battery mode.
• Surge Power: 10000VA, offering high surge capacity for handling power spikes.
• Efficiency: Peak efficiency of 93%, delivering a pure sine wave output for clean and reliable power.
• Transfer Time: Fast transfer time of 10ms typical, 20ms maximum, ensuring seamless power switching.
Solar Charger Specifications:
• Maximum PV Array Power: 6000W, accommodating high-capacity solar installations.
• MPPT Operating Voltage Range: 120VDC ~ 430VDC, with 1 independent MPP tracker.
• Maximum PV Array Open Circuit Voltage: 450VDC, supporting a wide range of solar panel setups.
• Maximum Solar Charge Current: 100A, allowing for efficient solar charging.
AC Charger Specifications:
• Charge Current: 80A, providing robust charging capabilities for connected batteries.
• AC Input Voltage: 230 VAC, with a selectable voltage range of 170-280 VAC for personal computers and 90-280 VAC for home appliances.
• Frequency Range: Auto-sensing 50Hz/60Hz, ensuring compatibility with various power grids.
Physical and Environmental Specifications:
• Protection Degree: IP20, offering protection against environmental factors.
• Dimensions: 330mm (W) x 485mm (H) x 135mm (D), compact and easy to install.
• Net Weight: 12kgs, lightweight for convenient handling and installation.
• Operating Temperature: 0°C - 55°C, with a storage temperature range of -15°C to 60°C.
• Humidity: Operates in 5% to 95% relative humidity (non-condensing), ensuring reliability in various climates.
• Altitude: Suitable for use at altitudes below 2000m.
Warranty:
The Growatt SPF 5000 US Inverter comes with a 2-year warranty, providing peace of mind and reliable support for your solar power system.
The Growatt SPF 5000 US Inverter is designed to deliver dependable and efficient power, offering advanced features that make it a versatile and effective solution for any solar energy setup.
