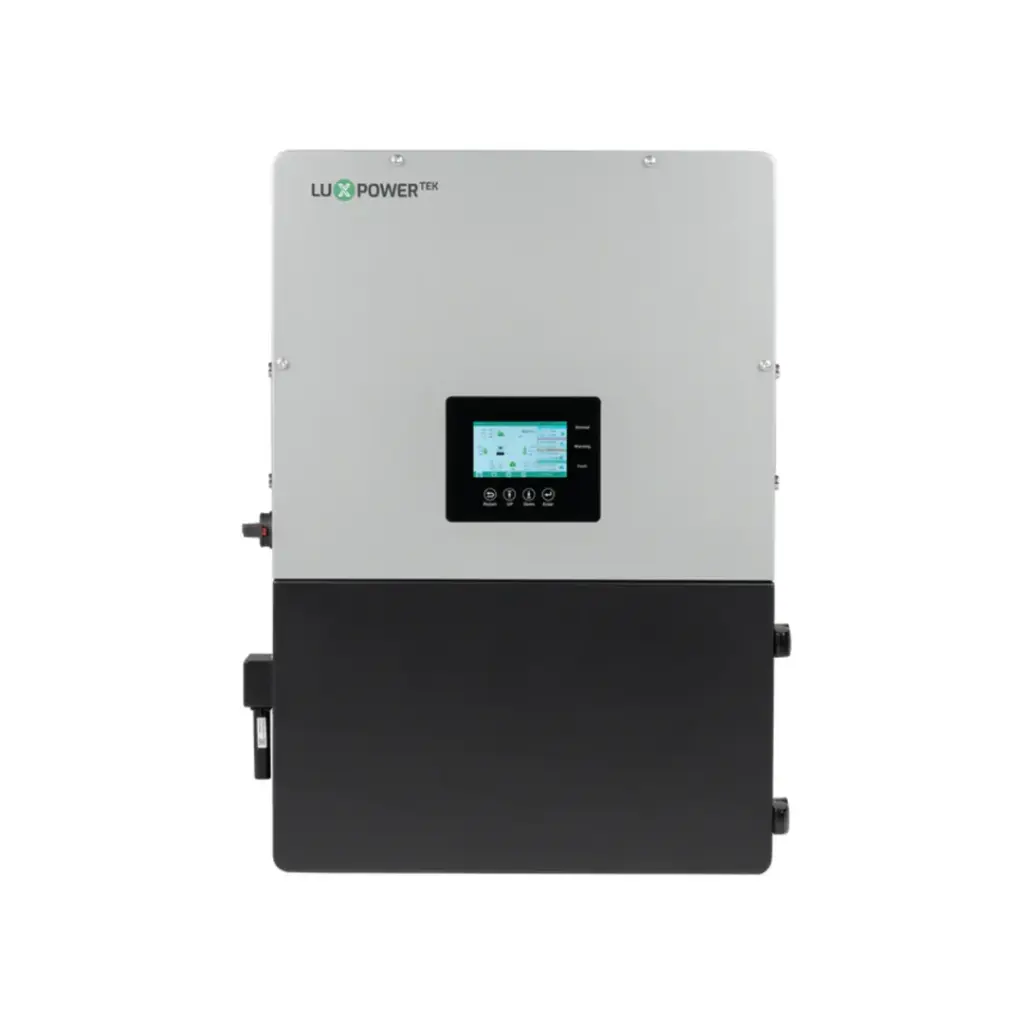

LuxPower LXP 12k Hybrid Inverter
The LuxPower 12kW Hybrid Inverter, model LXP-LB-US-12k , is a newly designed solar and energy storage hybrid inverter. Installable into grid-tied solar systems, off-grid solar systems and backup power solutions. The LuxPower 12kW inverter comes with an LCD screen that allows you to adjust the settings on the inverter anytime you want.

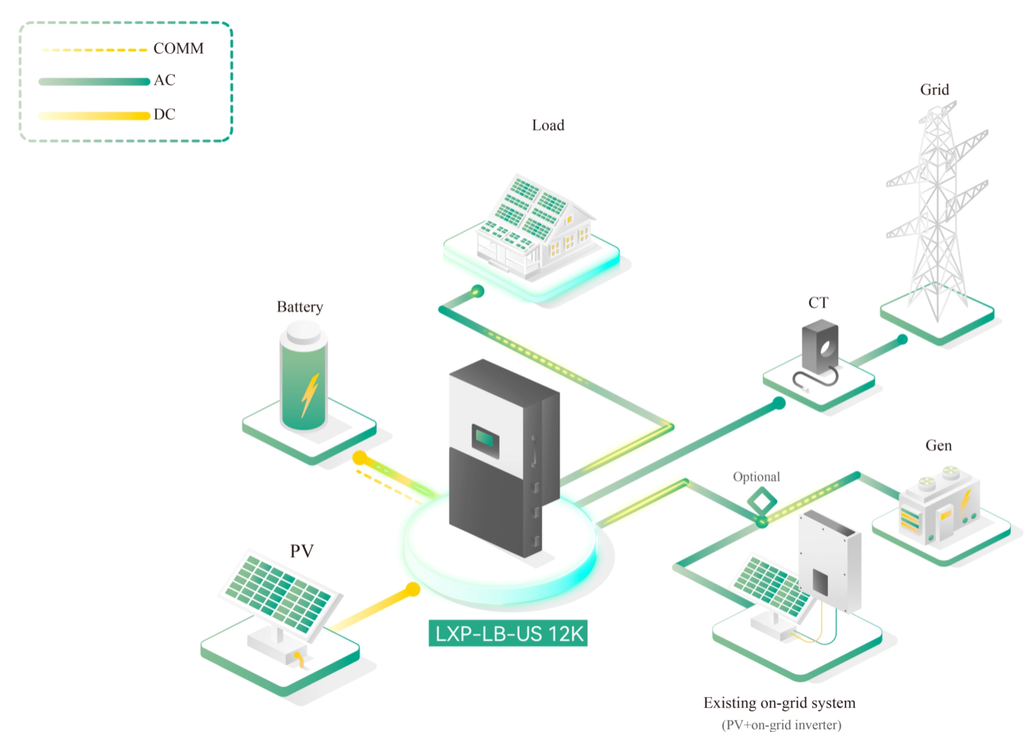

System Connection
The Lux Power 12kW Hybrid Inverter can use in on-grid solar, off-grid solar and back-up systems. The LXP Hybrid implements a programmable and scheduled intelligent solar storage system. LXP Hybrid inverter can help increase your solar energy self-use and protect your home appliances from grid shortages. LXP Hybrid inverter can also balance your energy use strategy to save on energy costs.
LXP hybrid inverters support variable working modes
- Self consumption mode: Solar energy is first used to carry the house load, and the remaining solar energy is used to charge the batteries, which can then integrate the solar energy into the grid.
- Force charge and discharge mode: The Lux Power 12kW Hybrid Inverter can charge or discharge the battery according to the time set by the user.
- Charge first mode: Solar energy will be used first to charge the battery, then for the home load, and finally fed into the grid. This model is suitable for areas with unstable power supply from the grid.

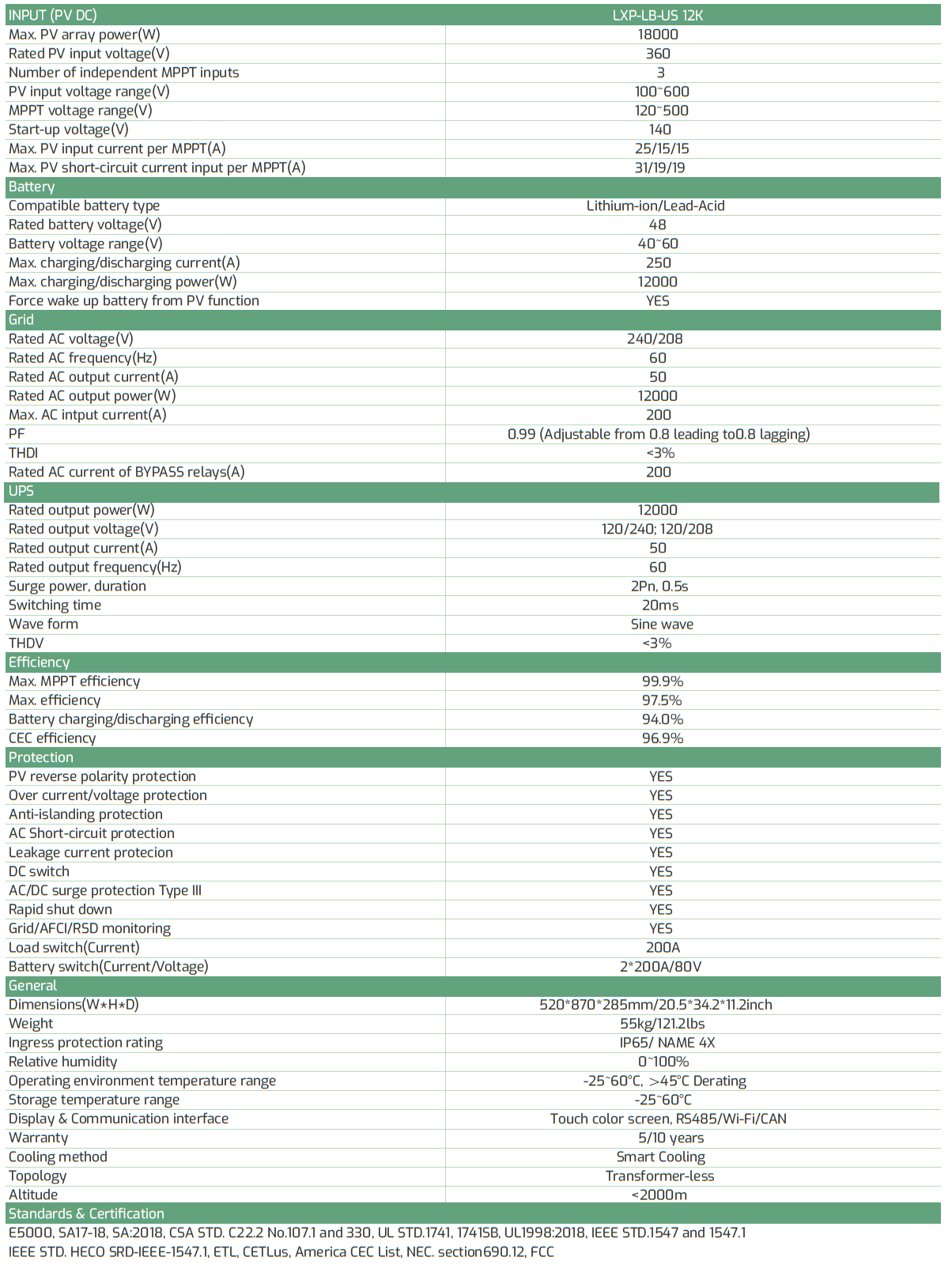

LuxPower 12k Hybrid Inverter Features
- AC coupling function
- Peak shaving function
- Smart load control
- Support up to 10pcs in parallel
- 12kW UPS output split phase
- LCD color touch screen
- 3 MPPT inputs, maximum up to 18 kW
- Breakers (Load and battery) are integrated
- 200A AC bypass current
- Separate generator interface available
- Integrated UPS module, on/off grid seamless switching under 20ms
Learn more about this product at: https://luxpowertek.com/hybrid-split-phase-lxp-lb-us-12k/
