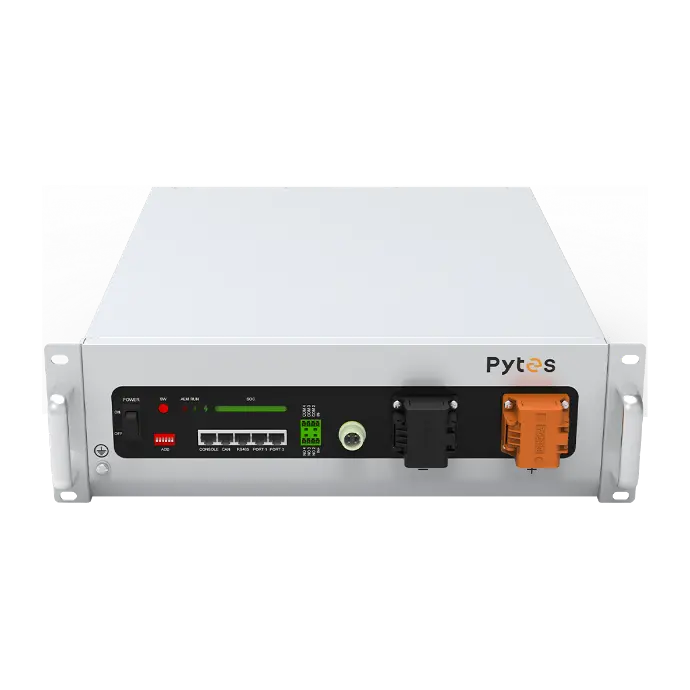

Pytes V5° UL9540A 1C Battery: Powering a Better Life
The Pytes V5° UL9540A 1C Battery is a powerful, smart, adaptable, and scalable energy storage solution designed to meet the demands of modern energy needs. With its advanced lithium iron phosphate (LFP) technology, this battery offers reliable and efficient performance, making it the perfect choice for home energy storage, commercial applications, and off-grid solutions.
Key Features:
- Nominal Voltage: 51.2V
- Voltage Range: 47.5V~57.6V
- Nominal Energy: 5.12kWh
- Nominal Capacity: 100Ah
- Recommended Charge/Discharge Current: 75A
- Maximum Charge/Discharge Current: 100A
- Peak Discharge Current: 101A~120A (3min), 121A~180A (15sec)
The Pytes V5° Battery is compact and lightweight, with dimensions of 17.32*20.87*5.51 inches and a weight of 97lbs, making it easy to integrate into any setup. It’s built for durability with a long cycle life of 6000 cycles and comes with a 10-year warranty.
Advanced Features:
- Higher Charge/Discharge Rate: Capable of handling high power demands with a maximum charge/discharge current of 100A and peak discharge capabilities up to 180A for short bursts.
- Wider Operating Temperature Range: The battery operates efficiently in temperatures ranging from 14°F to 131°F, with advanced heating and protection systems to ensure reliability even in extreme conditions.
- Remote Monitoring and Upgrading: Equipped with IoT interfaces for real-time monitoring, data visualization, remote upgrades, and error detection, giving you full control over your energy storage system.
- Scalability: The battery is highly scalable, with the ability to connect up to 14 units in one group (without a hub) or up to 6 groups (with a hub) for a total capacity of up to 430kWh.
- Certified Safety: The Pytes V5° Battery is UL1973, UL9540A, and CEC certified, ensuring it meets the highest safety and reliability standards.
Additional Specifications:
- Chemistry: Lithium Iron Phosphate (LFP)
- Communication Protocol: CAN/RS485
- Efficiency: ≥95% round-trip efficiency
- Ambient Temperature: Operates efficiently in a wide range of temperatures
- Protection: Multiple protection features including short circuit, overcharge, and over-discharge protection
What’s Included:
- V5° Battery Unit: 51.2V 100Ah LFP Battery
- Copper Busbars Connector: V5°-TMR-190*25*18mm*Nickelage*Silver
- Communication Cable C350: CAT6 Shielded Twisted Pair 8-Core Cord - 350mm - Blue - RJ45 Connector*2
- Ground Cable: Green/1015-10AWG/1m/TL6-6*2
- Registered Jack: RJ45*2
- Power Cables: Various specifications to ensure compatibility with your system
- Smart Monitor: Enables real-time monitoring and system control
Power your future with the Pytes V5° UL9540A 1C Battery, the next generation of energy storage solutions, designed for efficiency, reliability, and scalability.
