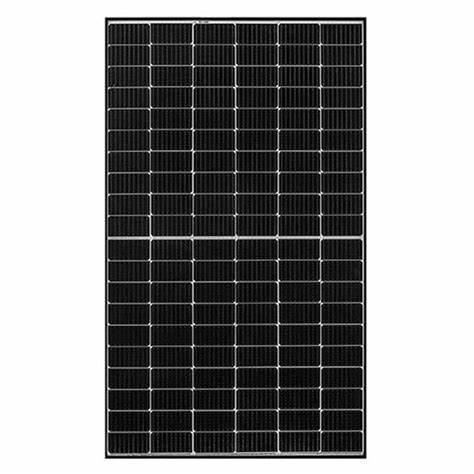

REC TwinPeak 5 Series Solar Panel: Premium Performance and Durability
The REC TwinPeak 5 Series solar panels are engineered to deliver exceptional power output and efficiency, making them an ideal choice for residential and commercial rooftops worldwide. Featuring REC’s pioneering Twin Design, these panels are 100% PID-free, ensuring reliable and long-lasting performance even under harsh conditions.
Key Features:
• Power Output (PMAX): Available in multiple wattage options, ranging from 390W to 410W, these panels deliver high power density, maximizing energy generation from your available space.
• Panel Efficiency: With efficiency ratings up to 20.8%, the REC TwinPeak 5 Black Series panels are designed to generate more power per square meter, ensuring optimal energy production.
• Nominal Power Voltage (VMPP): Ranges from 36.8V to 38.3V, ensuring compatibility with a wide range of inverters and system designs.
• Nominal Power Current (IMPP): Between 10.60A and 10.71A, providing consistent and reliable power output for your system.
• Durable Construction: These panels feature a super-strong anodized aluminum frame and a highly resistant black polymer backsheet, ensuring long-term durability and aesthetic appeal.
• Low Light Performance: Optimized for excellent performance in low light conditions, maintaining high efficiency even on cloudy days.
Advanced Specifications:
• Cell Type: 132 half-cut mono c-Si p-type cells arranged in 6 strings of 22 cells each, enhancing panel efficiency and reducing the risk of hotspots.
• Glass: 3.2 mm solar glass with an anti-reflective surface treatment, ensuring maximum light absorption and energy conversion.
• Junction Box: IP68 rated with 3 bypass diodes, ensuring robust protection against environmental factors and enhancing the panel’s longevity.
• Connectors: Stäubli MC4 PV-KBT4/KST4 connectors, compatible with a wide range of system setups, and ensuring a secure and efficient connection.
• Cable: 4 mm² solar cable, 1.2 m in length, providing flexibility and ease of installation.
• Dimensions and Weight: 1899 x 1040 x 30 mm, with a weight of 21.6 kg, making it easy to handle and install.
Temperature and Performance Ratings:
• Operational Temperature: Designed to operate efficiently within a wide temperature range, from -40°C to +85°C.
• Temperature Coefficients: PMAX: -0.34 %/°C, VOC: -0.26 %/°C, ISC: 0.04 %/°C, ensuring minimal power loss in high-temperature environments.
• Nominal Module Operating Temperature (NMOT): 44.6°C (±2°C), ensuring reliable performance under standard operating conditions.
Certifications and Warranty:
• Certifications: IEC 61215:2016, IEC 61730:2016, UL 61730, and more, ensuring compliance with international quality and safety standards.
• Warranty: Available with the REC ProTrust Warranty, offering up to 25 years of product, power, and labor warranties when installed by a certified REC Solar Professional. Annual degradation is as low as 0.5%, ensuring 86% of nominal power output even after 25 years.
Additional Information:
• Delivery and Packaging: Panels are delivered in secure packaging, with 33 panels per pallet and up to 792 panels per 40 ft GP/high cube container, ensuring safe and efficient transport.
• Maximum Ratings: Capable of withstanding up to 7000 Pa of front load and 4000 Pa of rear load, ensuring durability in challenging environments.
The REC TwinPeak 5 Series solar panels combine cutting-edge technology with exceptional durability, making them the perfect choice for those looking to maximize their energy production and efficiency.
