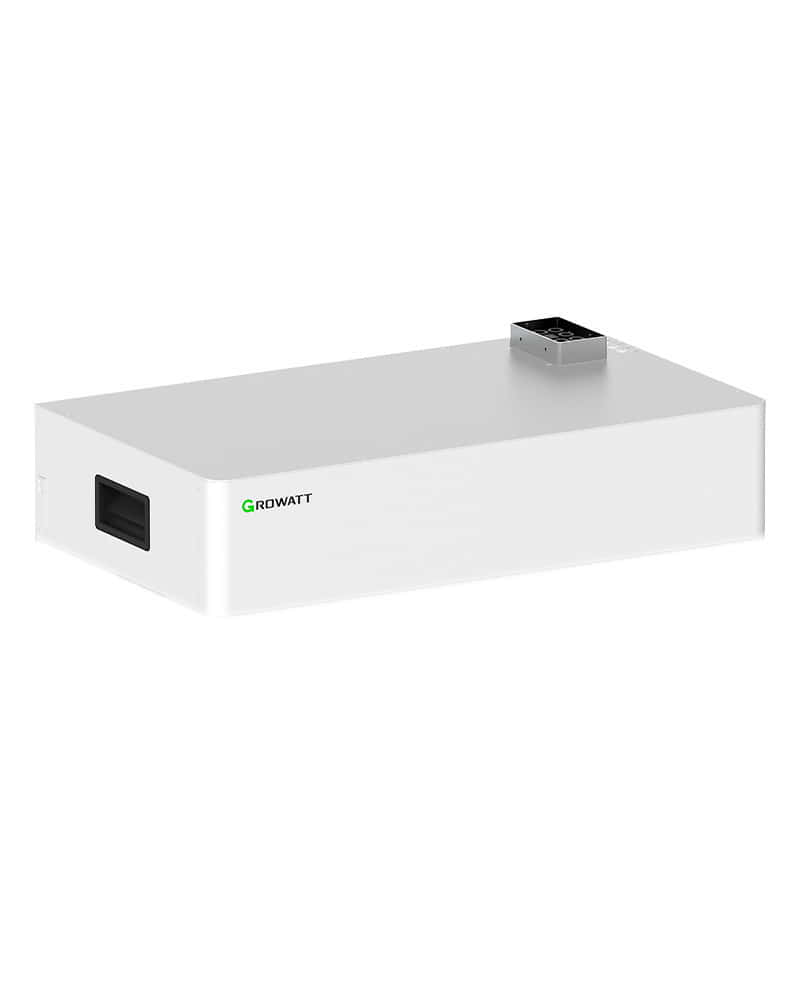

Growatt AXE 5.0L Modular Battery: Scalable and Safe Energy Storage
The Growatt AXE 5.0L Modular Battery is a versatile and secure energy storage solution designed to meet a wide range of power needs. With flexible capacity options ranging from 5kWh to 400kWh, this modular system is ideal for both residential and commercial applications.
Key Features:
• Flexible Capacity Options: The AXE 5.0L allows for modular scalability from 5kWh up to 400kWh, providing a customized energy storage solution to fit any requirement.
• Safety and Reliability: Utilizing cobalt-free Lithium Iron Phosphate (LiFePO4) technology, the battery ensures excellent safety and long-term reliability.
• Cable-Free Installation: The stacked installation design eliminates the need for cable connections, simplifying the setup process.
• Remote Firmware Upgrade: Stay up-to-date with the latest features and enhancements through remote firmware upgrades.
Battery Specifications:
• Battery Type: Cobalt-Free Lithium Iron Phosphate (LFP)
• Energy Capacity: Starts at 5.0kWh per module, with up to 8 modules in parallel for a maximum capacity of 400kWh.
• Dimensions and Weight: The base module measures 650mm (W) x 350mm (D) x 165mm (H) and weighs 47kg, with size and weight increasing proportionally with additional modules.
• Nominal Voltage: 51.2V with an operating voltage range of 48V to 57.6V.
• Max Charge/Discharge: 60A for the base model, with higher current capabilities as capacity increases.
General Specifications:
• Installation: Floor installation with optional extra base for stability.
• Operating Temperature: Designed to function in temperatures from 0°C to 50°C (32°F to 122°F).
• IP Protection: Rated at IP20 / NEMA Type 1, providing sufficient protection for indoor environments.
• Communication Port: Equipped with CAN/RS485 for seamless integration and monitoring.
Certifications:
The AXE 5.0L Modular Battery is certified to meet international standards, including CE, ROHS, UL1973, FCC, UN38.3, and PI965, ensuring compliance and safety across global markets.
The Growatt AXE 5.0L Modular Battery offers a reliable and scalable energy storage solution, with advanced safety features and flexible installation options, making it an excellent choice for a wide range of energy storage needs.
